Stainless Steel Flammability Testing Equipment For Fire Retardant Paint

China Stainless Steel Flammability Testing Equipment For Fire Retardant Paint supplier
Stainless Steel Flammability Testing Equipment For Fire Retardant Paint supplier Stainless Steel Flammability Testing Equipment For Fire Retardant Paint supplier

Large Image :  Stainless Steel Flammability Testing Equipment For Fire Retardant Paint

Product Details:

Place of Origin: DONGUAN CHINA
Brand Name: ZONSKY
Certification: ISO9001:2008, CE, SGS, IAF
Model Number: ZY6241

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 15 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5 Set / Month
Detailed Product Description
Warranty: 12 Months Material: Stainless Steel
Test Station: 1 Station Test Plate Size: L300 * W150
Size: 340 X 230 X 794 MM Burning Lamp: Brass Material
High Light:

flammability test chamber

,

flammability testing labs

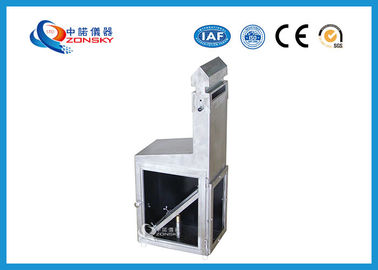

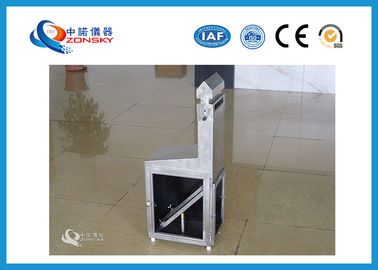

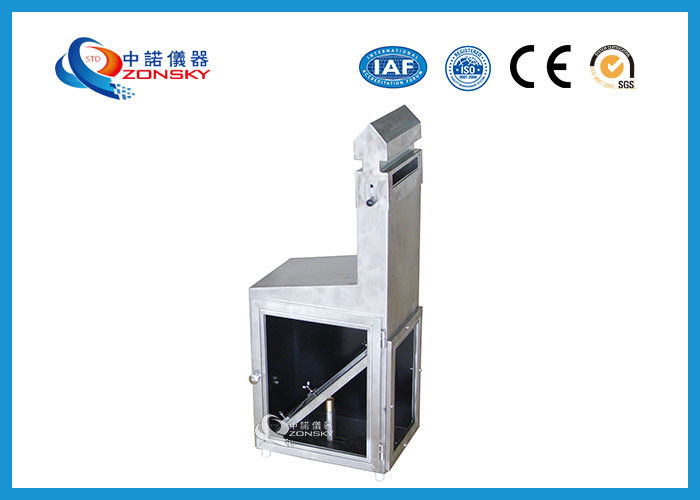

Fire Retardant Paint Combustion Tester / Flammability Testing Equipment (Chamber Method)





1. Scope of Application



It is suitable for testing the fire retardant performance of the fire retardant coating on the combustible substrate surface under laboratory conditions.





2. Standards



GB/T 12441-2005 (Appendix C).



GB/T 12441-2005 (Appendix C).





3. Main parameters



A) Test station: 1 station



B) Test plate size: L300 * W150 thickness is 5 mm, the surface is smooth and smooth.



C) Fuel: chemically pure ethanol.



D) The size of the combustion chamber: 340 x 230 x 794 mm.



E) The chassis is made of high quality 304 stainless steel. It is formed by bending with NC machine tool. It is smooth and beautiful.



F) Burning lamp: brass material, outer diameter 24 mm, wall thickness 1 mm, high 17 mm.





4. Characteristics



The box CNC machine tool is bending and shaping, and it is more sleek and beautiful.



The front door is designed as a glass window to observe the burning condition of the sample.



The right side is designed with glass windows.



Conical hood with top, adjustable exhaust smoke.



Removable test burner, brass material.



The movable test board is even and smooth.



Fuel chemically pure grade ethanol (customer supplied).



Stainless Steel Flammability Testing Equipment For Fire Retardant PaintStainless Steel Flammability Testing Equipment For Fire Retardant PaintStainless Steel Flammability Testing Equipment For Fire Retardant Paint



Stainless Steel Flammability Testing Equipment For Fire Retardant Paint

Stainless Steel Flammability Testing Equipment For Fire Retardant PaintStainless Steel Flammability Testing Equipment For Fire Retardant Paint

Stainless Steel Flammability Testing Equipment For Fire Retardant Paint

Stainless Steel Flammability Testing Equipment For Fire Retardant Paint
