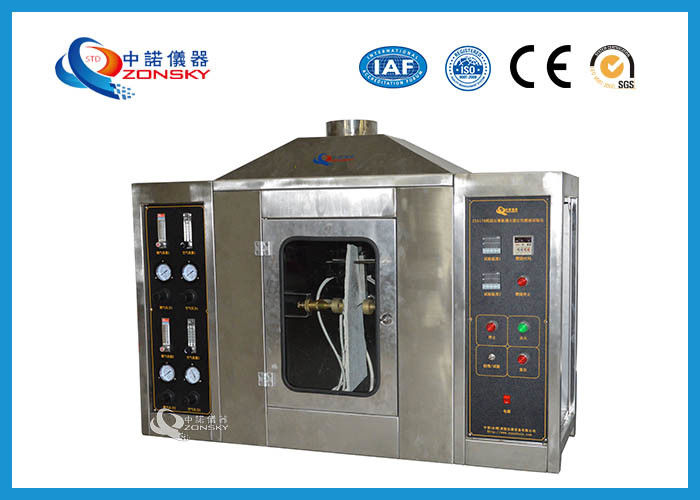

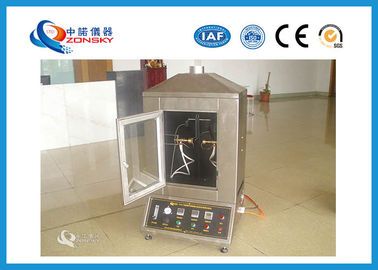

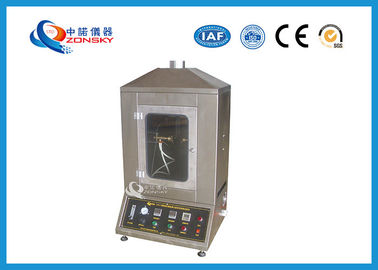

SUS 304 Flame Test Apparatus For Paper Plasterboard Fire Stability Combustion

China SUS 304 Flame Test Apparatus For Paper Plasterboard Fire Stability Combustion supplier
SUS 304 Flame Test Apparatus For Paper Plasterboard Fire Stability Combustion supplier SUS 304 Flame Test Apparatus For Paper Plasterboard Fire Stability Combustion supplier SUS 304 Flame Test Apparatus For Paper Plasterboard Fire Stability Combustion supplier SUS 304 Flame Test Apparatus For Paper Plasterboard Fire Stability Combustion supplier

Large Image :  SUS 304 Flame Test Apparatus For Paper Plasterboard Fire Stability Combustion

Product Details:

Place of Origin: DONGUAN CHINA
Brand Name: ZONSKY
Certification: ISO9001:2008, CE, SGS, IAF
Model Number: ZY6178

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 15 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5 Set / Month
Contact Now
Detailed Product Description
Warranty: 12 Months Material: Stainless Steel SUS 304
Standards: GB/T 9775 - 2008 Gas Source: Liquefied Petroleum Gas
Combustion Chamber: L700 * W400 * H810 MM Power: 0.5KW, AC 220V / 50HZ



Paper Plasterboard Fire Stability Combustion Chamber / Testing Equipment





1. Application



It is suitable for the thermal stability of paper gypsum board in the state of fire, starting from the time of fire, until the specimen breaks up.





2. Standards



GB/T9775-2008 test standards.





3. Performance Parameter



(1) Test power supply: 220 V ± 10% / 50 HZ.



(2) Box CNC machine tool forming, material: SUS304



(3) The top is equipped with exhaust fans and hose connectors.



(4) Automatic flameout with protective device.



(5) Digital display time setting, time control precision 0.1 seconds.



(6) Rotator flowmeter can adjust combustion gas flow rate.



(7) There is glass inspection in front of the chassis to observe the state of the test products.



(8) The height and angle of Bunsen lamps can be adjusted to meet the requirements of different test standards.



(9) Gas source: purity is more than 95%, liquefied petroleum gas or gas.



(10) The high precision pressure regulating valve regulates the gas pressure required by the standard.



(11) The tester consists of the test part and the control part, and adopts the integrated design.



(12) With automatic ignition function, temperature and time digital display, observation and record easy to use, stable and reliable, double burner with air-conditioned air holes. The flame length can be adjusted conveniently, and can be transferred from 20mm to 100mm.



(13) The time and duration of flame burning can be adjusted within the range of 0 ~ 99 min 99 seconds.



(14) Power: 0.5KW, AC 220V / 50HZ



SUS 304 Flame Test Apparatus For Paper Plasterboard Fire Stability CombustionSUS 304 Flame Test Apparatus For Paper Plasterboard Fire Stability CombustionSUS 304 Flame Test Apparatus For Paper Plasterboard Fire Stability Combustion



SUS 304 Flame Test Apparatus For Paper Plasterboard Fire Stability Combustion

SUS 304 Flame Test Apparatus For Paper Plasterboard Fire Stability Combustion

SUS 304 Flame Test Apparatus For Paper Plasterboard Fire Stability Combustion

SUS 304 Flame Test Apparatus For Paper Plasterboard Fire Stability Combustion

SUS 304 Flame Test Apparatus For Paper Plasterboard Fire Stability Combustion



FAQ



Q: Are you trading company or manufacturer ?

A: We are a manufacturer.



Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? Is it free or extra ?

A: No, we don't provide the samples for testing.



Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shipment.
If you have another question, please feel free to contact us.



Q: What is your terms of payment ?

A: The warranty for the equipment is 1 year. Definitely, all equipment are tested well and runs well by testing our customer's sample before shipment. Please contact us if the equipment doesn't work well after being shipped to your company. We will guide you how to fix it. The spare parts or components will be sent if necessary. The charges will be occurred if it is caused by customer's misoperation.
