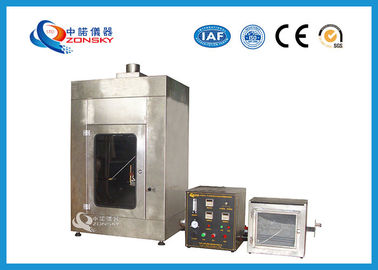

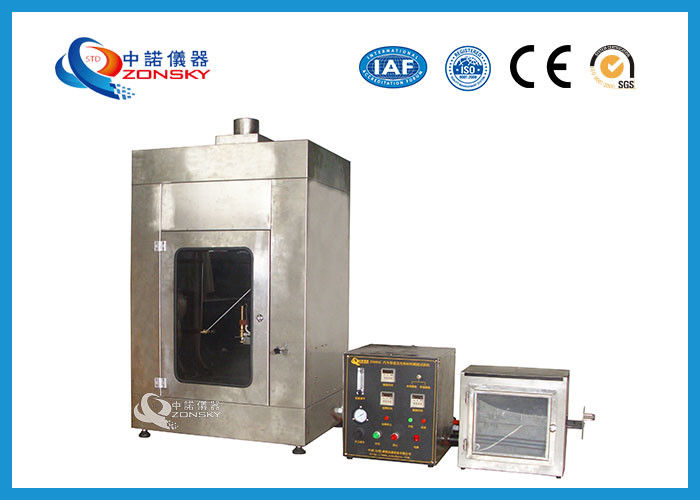

Wire Flammability Testing Equipment For 45 Degree Burning Characteristics

China Wire Flammability Testing Equipment For 45 Degree Burning Characteristics supplier
Wire Flammability Testing Equipment For 45 Degree Burning Characteristics supplier Wire Flammability Testing Equipment For 45 Degree Burning Characteristics supplier

Large Image :  Wire Flammability Testing Equipment For 45 Degree Burning Characteristics

Product Details:

Place of Origin: DONGUAN CHINA
Brand Name: ZONSKY
Certification: ISO9001:2008, CE, SGS, IAF
Model Number: ZY6081C

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 15 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5 Set / Month
Detailed Product Description
Surface Dealing: Stainless Steel Standards: SAE-J 1128-2005
Dimension: L420 * W205 * H370 MM Flame Height: 38 MM
Metal Comb: L110 * W40 * H5 MM Nozzle Length: 100 MM
High Light:

flammability test apparatus

,

flammability testing labs

SAE-J 1128-2005 Vehicle Wire Combustion / Flammability Testing Equipment / Test Chamber





1. Application



This set of equipment is suitable not only for testing the 45 degree burning characteristics of automobile pipeline, but also for identifying the interior decoration materials of automobiles (cars, multi-purpose passenger cars, trucks and buses), such as seat cushions, seat backs, seat covers, seat belts, etc. Head pillow, armrest, movable folding roof, all decorative lining, dashboard, sundries box, indoor goods rack board, or rear window sill board, curtain, floor covering...) Evaluation of horizontal combustion characteristics.



Among them, the design and manufacture of "45 degree combustion characteristic test machine for automotive pipeline" meets the test requirements of 902137-03 and TL1010_EN-1997, and the design and manufacture of "combustion test machine for automotive interior materials" meets the requirements of GB/T8410 and other standards.



The equipment is mainly composed of "45 degree combustion test box for automobile pipeline", "electronic control box" and "combustion test box for automobile interior materials".



Combustion box and control box are high quality stainless steel structure, beautiful appearance, corrosion resistance, and control system automation, with convenient observation and recording, stable and reliable use and other characteristics.





2. Standards



ISO6722-2006, JASO D 611/2008, SAE-J 1128-2005, QC/T730-2005, DIN 72551





3. Main Technical Parameters



(1) The dimension of the combustion chamber: L420 * W205 * H370 mm



(2) Sample Jig: This machine has 2 sets of U jig. One set of sample fixture is used for standard sample preparation (100 mm), the other set is used for non-standard sample preparation (< 80 mm).



(3) Flame / burning time: 0 ~ 99.99 s/min/h set at random.



(4) Burning lamp: nozzle with inner diameter of 9.5 mm, burning angle is 90 degree, nozzle length is 100 mm.



(5) Gas source: high purity liquefied gas (customer owned)



(6) Flame height: 38 mm adjustable



(7) Metal comb: L110 * W40 * H5 (mm)



(8) Collection plate: material is stainless steel, size: L336 * W85 * H12 mm.



(9) Combustion chamber contour dimension (mm): L1200 * W800 * H600.



(10) Nozzle: Phi 9.5 mm, with flame adjustment function, blue flame height: 38 mm



(11) Work power supply: AC220V, 50HZ



Wire Flammability Testing Equipment For 45 Degree Burning CharacteristicsWire Flammability Testing Equipment For 45 Degree Burning Characteristics

Wire Flammability Testing Equipment For 45 Degree Burning Characteristics

Wire Flammability Testing Equipment For 45 Degree Burning Characteristics

Wire Flammability Testing Equipment For 45 Degree Burning Characteristics

Wire Flammability Testing Equipment For 45 Degree Burning Characteristics

Wire Flammability Testing Equipment For 45 Degree Burning Characteristics
