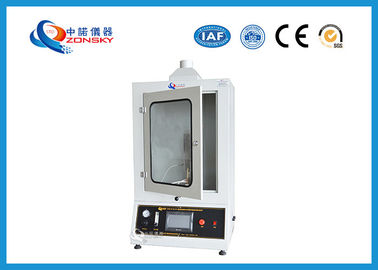

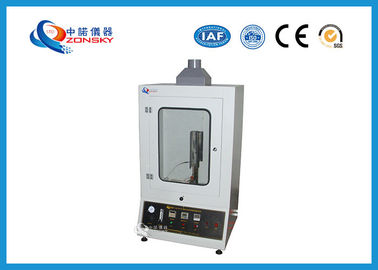

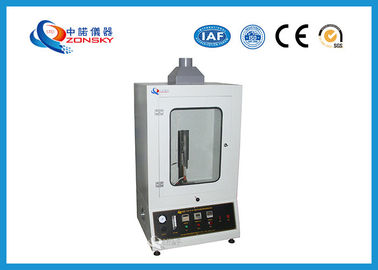

ASTM D3014 Vertical Flammability Chamber 730*280*750 MM For Rigid Foam Plastics

ASTM D3014 Vertical Flammability Testing Equipment / Test Chamber For Rigid Foam Plastics

1. Application

This equipment is suitable for evaluating the vertical combustion performance of rigid foams under laboratory conditions. The design meets the requirements of GB/T8333 - 2008 "Test Method for Combustibility of Rigid Foam Plastics - Vertical Combustion Method".

2. Standards

GB8333- 2008, ASTM D3014 - 04a, ISO3582, UL94, HBF, HF - 1, HF - 2

3. Main Technical Parameters

(1) Chamber dimension: 0.15 m3 (L730 * W280 * H750 mm)

(2) The specification of the fire nozzle: inner diameter (9.5 ± 0.5) mm, cylinder length 115 mm, and vertical direction 15℃.

(3) Flame height: (25 ~ 35) mm height blue flame

(4) Gas: propane or natural gas with purity above 95%

(5) The internal flame temperature was measured to be (960 ± 25)℃ by using K type thermocouple.

(6) Instrument composition: ventilation cabinet, chimney, sample bracket and control part

(7) Chimney: length 64 mm, width 57 mm, height 305 mm, stainless steel, inside is 0.025 thick aluminum foil

(8) Sample support: long 191 mm, wide 13 mm made of stainless steel, with hooks on the back.

(9) Gas flow rate: 0.1 ~ 1 L/min adjustable.

(10) Timer: 0 ~ 99.99s can be set arbitrarily, the accuracy is less than 0.1s.

(11) Test scale: minimum scale 1.0 mm

(12) Standard sample specification: long (254 ± 1) mm, width and thickness are (19 ± 1) mm

(13) Size: L710 * W500 * H1430 mm

(14) Working power supply: AC 220V, 50HZ; Total power is 500W

4. Specimen Requirement

(1) The specimen should be cuboid. The length of the specimen should be (254 ± 1) mm, and the width and thickness should be (19 ± 1) mm respectively. The samples should be clean and smooth without dust.

(2) The specimen should be cut from a homogeneous material. If the density of a sample is higher than 5% of the average density of six samples in each group, the sample is not suitable for this group of samples, and should be replaced to meet the requirements.

(3) Sample number: 6 samples

(4) State regulation

Before the test, the sample should be regulated for more than 24 hours in the environment of temperature (23 ± 2)℃ and relative humidity 50% ± 5%.
